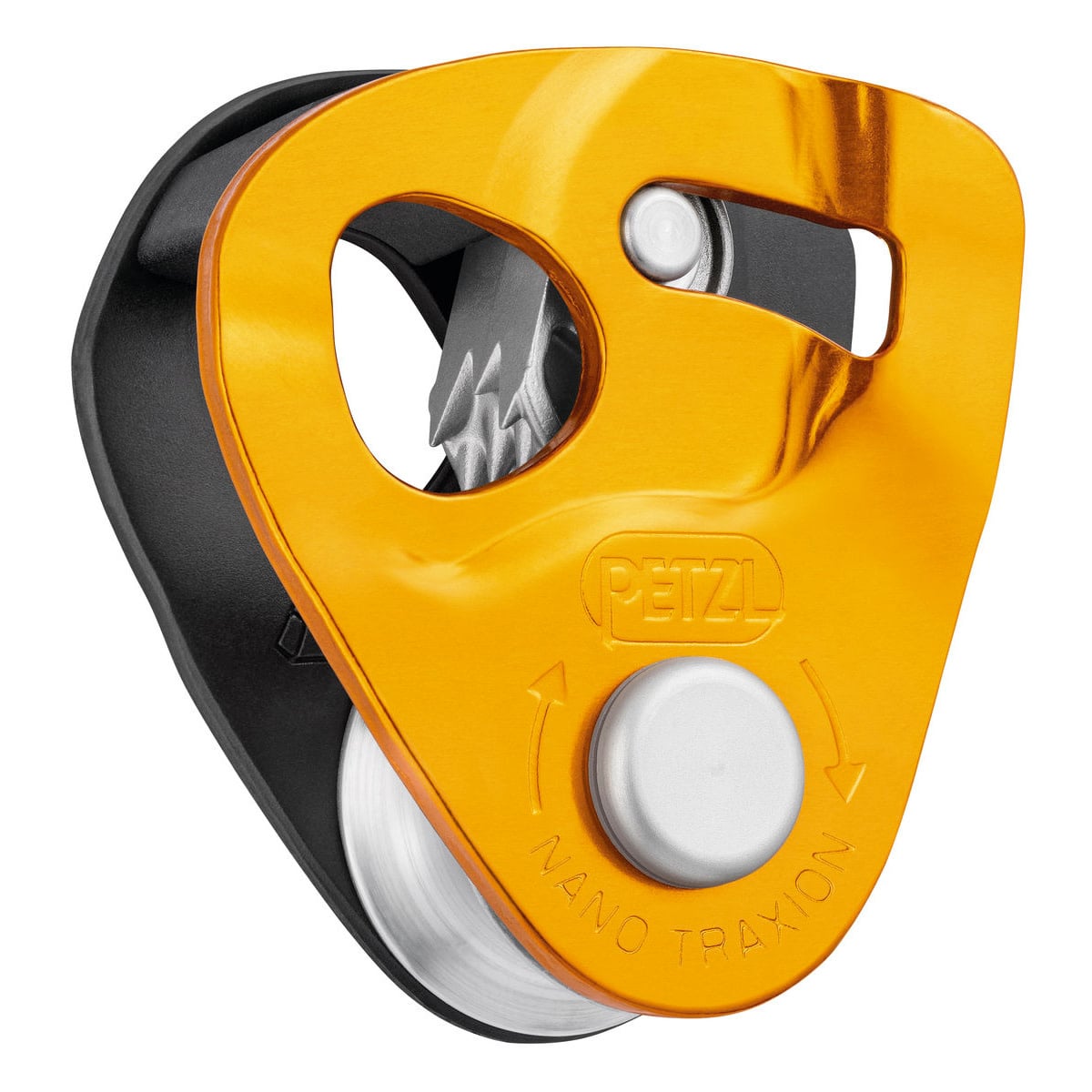

Nano Traxion Capture Pulley

Product details

NANO TRAXION is an ultra-lightweight (53 g) and compact progress-capture pulley designed for rescue. Sealed ball bearings provide excellent efficiency (91 %).

• Ultra-light and compact:
  - only 53 g
  - very compact

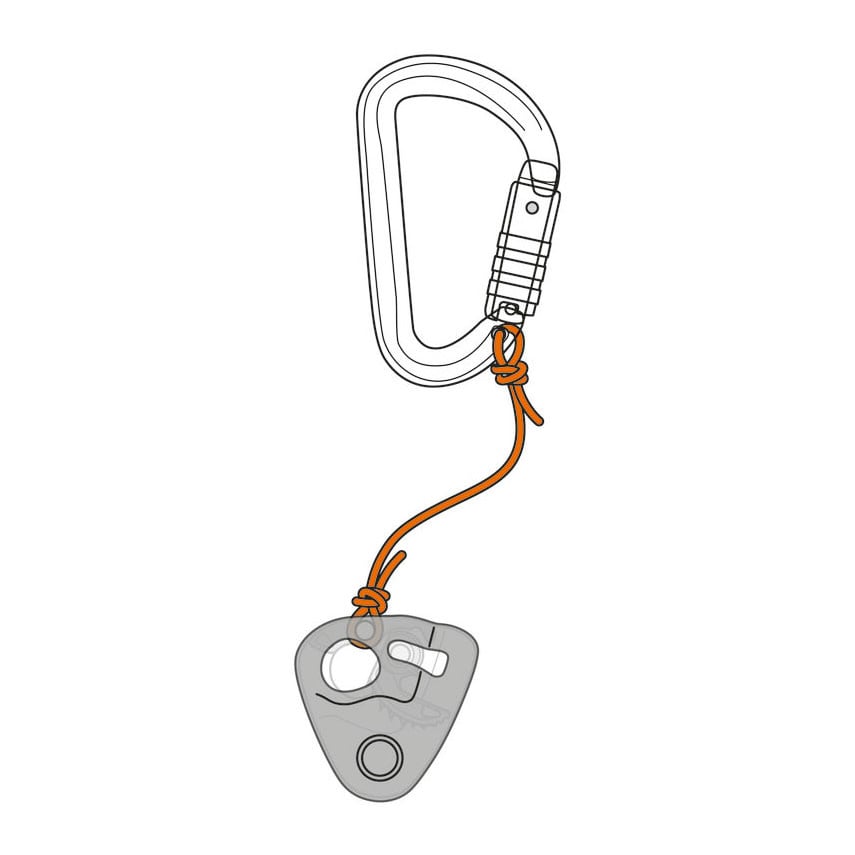

  - hole allows a Sm'D carabiner to be connected to the pulley with a cord, making the device loss-proof
• Designed for rescue
• High efficiency:
  - sealed ball bearings provide excellent efficiency (91 %)
  - locks even on frozen or muddy ropes
  - for use on 7 to 11 mm diameter ropes
  - rope installation diagrams engraved inside pulley

Specifications

• Weight: 53 g
• Certification(s): CE EN 567, UKCA, UIAA
• Min. rope diameter: 7 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 18 mm
• Breaking strength: 2 x 7,5 = 15 kN
• Breaking strength as progress capture pulley: 4 kN
• Efficiency: 91 %
