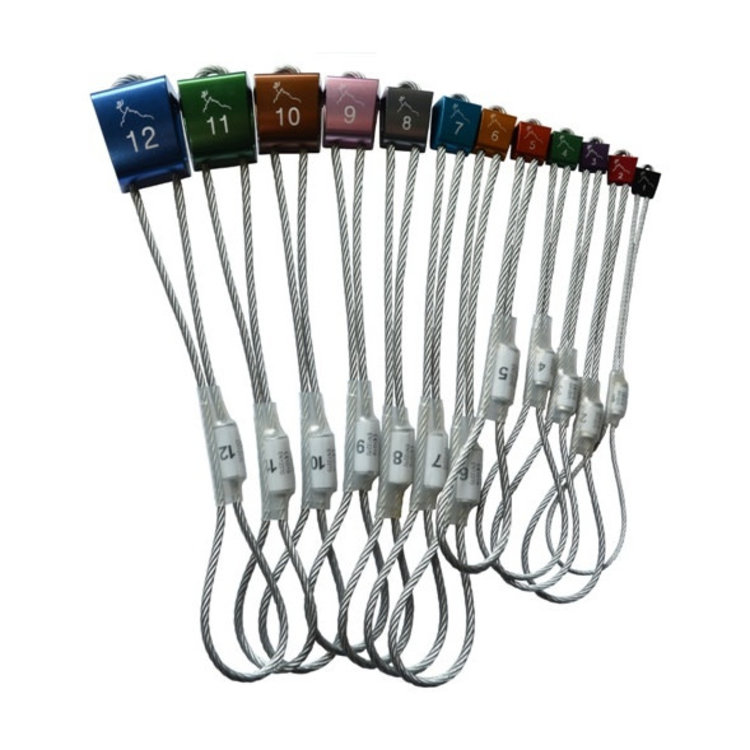

Wedgemount Nuts Set & Tool (Size 1 - 12)

Product details

The Wedgemount nuts are made of 6061-T6 aluminum alloy for maximum light weight and strength and they have a galvanized steel cable for resistance to corrosion. They feature colour-coded anodization and numbering for easy visual identification.

The Wedgemount nuts have a transverse tapered shape that allows for multiple placement options. With their classic concave and convex shape they will cam securely into placements when loaded.

The set includes a Grandall Nut Tool.

Specifications

• Strength: Size #1(2kN) #2(5kN) #3(5kN) #4(5kN) #5(10kN) #6(10kN) #7(10kN) #8(10kN) #9(10kN) #10(10kN) #11(10kN) #12(10kN)
• Width: Size #1(4.5mm) #2(5.9mm) #3(6.5mm) #4(8.2mm) #5(9.9mm) #6(11.5mm) #7(13.2mm) #8(14.9mm) #9(17.2mm) #10(19.9mm) #11(22.5mm) #12(26.2mm)
• Length: Size #1(9.5mm) #2(11.2mm) #3(12.2mm) #4(13.2mm) #5(15.2mm) #6(16.2mm) #7(17.9mm) #8(20.5mm) #9(22.9mm) #10(26.2mm) #11(29.9mm) #12(34.9mm)
• Weight: Size #1(6g) #2(10g) #3(12g) #4(14g) #5(20g) #6(26g) #7(28g) #8(30g) #9(32g) #10(40g) #11(46g) #12(56g)
• Total Weight (1-12): 320g
• CE Certified: CE 1019 EN 12270
